Pit Less Weighbridge
Low civil cost and lesser excavation is required. Very rugged and tough in structure. Come in module form for easy transportation and installation. Surface mounted, hence very economical. The load cells and consequently the top of dock plate, are above the ground level, facilitating easy maintenance. No high water table and drainage problem.
Standard Static Configuration
- Rail type : 115 lb AREA (consult factory for other sizes)
- Rail length : 70 (1.78 m)
- Active weighing length per section : 8 (20 cm)
- Mounting : Direct to existing ties and ballast
- Type of weighing : Two draft or full draft
- Number of Weighline sections : Two draft - four, Full draft - eight
- Maximum axle load : 80,000 lb (40,000 kg)
- Maximum car weight : 320,000 lb (160,000 kg)
- Scale division size : 100 lb (50 kg), switchable to 20 lb (10 kg) for calibration
- Full draft : +0.25% or +200 lb (100 kg), whichever is greater
- Two draft : +0.4% or +300 lb (150 kg), whichever is greater
- Operating temperature range : -20o F to 120o F (-28o C to 49o C)
- Temperature compensation : Span and zero
- Weight : 230 lb (105 kg) per rail assembly
Mobile Weigh Bridge is used for construction field
- Foundation is very easy & Low cost.
- Easy to install a weigh bridge within 2-3 hrs.
- Easy to transport from one place to another place.
- Weigh bridge with extra fabricated ramp saved foundation cost.
Electronics Weighbridge (Pit Type)
Suitable, if there is space limitation, as the ramps are not required in either side. Flush to ground level. Design for heavy usage and harsh environment. Easy movement of vehicles on Platform. Wide flanged beams and other structural members are accurately fabricated and built to high quality engineering standards for durable and accurate performance.

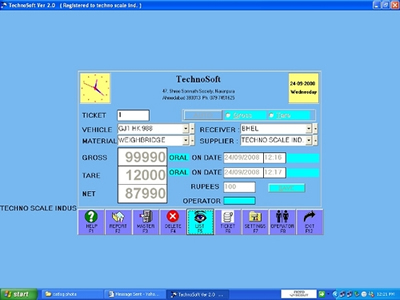

SOFTWARE ADVANTAGES BY TECHNO SCALE SYSTEMS
- Multi level password protection, to prevent un-authorised access to the setup procedure.
- Any particular record of stored weighment data can be recalled for viewing deleting and printing
- Provision of entering data live vehicle number, customer and commodity during weighment and printing the same on a ticket/ slip.
- Date and time data is generated internally and the same is printing on the slip. Storage of many records in memory.This data can be recalled date wise, Customers wise, Materials wise for report printing.
- User friendly Software Calibration
